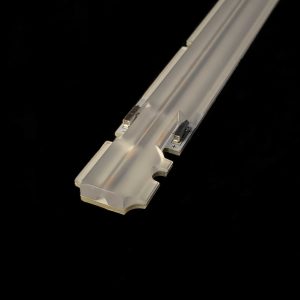

On-Board Cosine® Optic (Batwing)

Finally a solution for high quality indirect illumination that actually works! Designed to match the theoretically ideal cosine curve over a wide angular range. Provides uniform and consistent wide angle light without problematic and unwanted striations or color over angle artifacts.

Fusion Optix technology and precision extrusion processes combine to provide high efficiency, uniform wide angle light distributions. Designed to be placed directly onto Fusion Optix range of SpekLED™ LED boards to provide high efficiency light in a range of choices including 2700K to 4000K CCT, 80, 90 and >90 CRI and Circadian.

Download Cosine® Optics Brochure

Key Features

Choice of beam spread from 90 to 150 degrees
Choice of mounting options
>90% optical efficiency
<30K color shift
Compliments SpekLED range of LED boards
Patents pending

Description

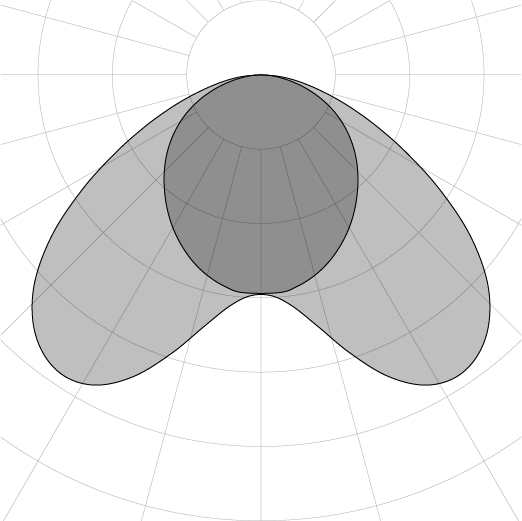

90 Deg Batwing

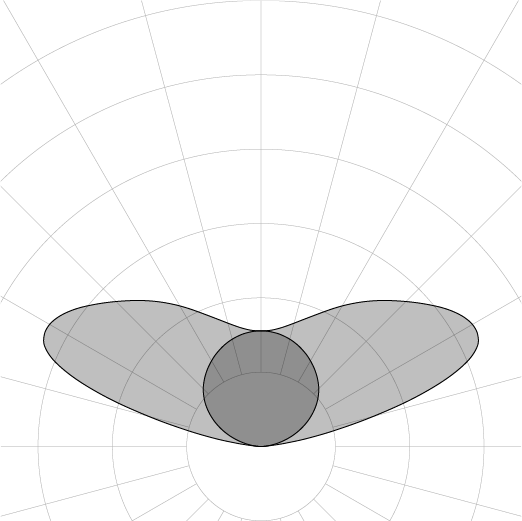

120 Deg Batwing

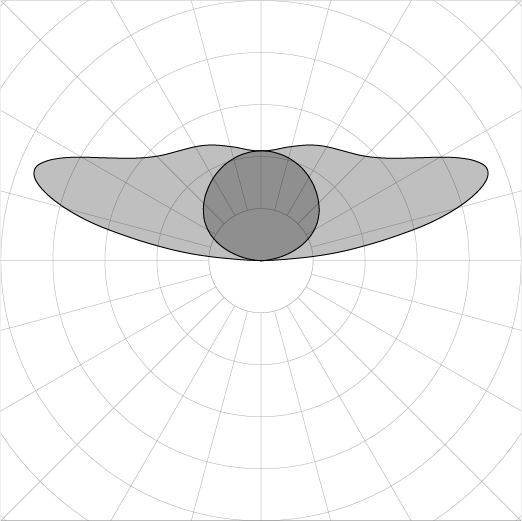

150 Deg Batwing

Fusion Optix Cosine Optic® for perfect indirect illumination

Cosine™ optical technology and precision extrusion processes combine to provide high efficiency, uniform wide angle light distributions. Designed to be placed directly onto Fusion Optix range of SpekLED™ LED boards to provide high efficiency light in a range of choices including 2700K to 4000K CCT, 80, 90 and >90 CRI and Circadian.

Further Information

Designed specifically for indirect linear LED lighting products.
Easy to use, fits neatly on SpekLED™ boards.
Batwing angles of 90, 120, 135 or 150 degrees (Super Wide) options.
Optical efficiencies of up to 93%
Available in PMMA, High Temp PMMA, PC, and Silicone (In Development)
Enhanced color reliability and lifetime performance via ColorSure™ technology.
Booster films increase efficiency by 5-10%. Standard lengths up to 10ft.
Also available as continuous run, snap-in or slide-in FlatLENS™.
Significant high volume price breaks.
Manufacturing based 100% in USA.
Full service engineering support available.
