Description
Efficient, High Performance, Quality Light Output

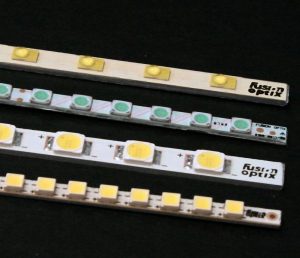

Fusion Optix LED Rails for Display lighting offer industry-leading performance to help our customers design the brightest, most colorful and most efficient displays.
They are designed to be optimally paired with Fusion Optix Light Guides and Light Enhancement Films to maximize display efficiency, and are tested to our most rigorous quality standards.
In addition to you standard product offering, Fusion Optix serves the display market at any level of system customization. Our LED Rails can be fully customized to meet the specific needs of any display application.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Nullam in dui mauris. Vivamus hendrerit arcu sed erat molestie vehicula.
Lumen Output and Color
| FO Part # | Description | Viewing Angle | CCT | White Point | Wavelength (nm) | |||
|---|---|---|---|---|---|---|---|---|
| u’ | v’ | R | G | B | ||||
| 9300-0030-00 | High brightness LED Rail 10.4″ | 120 | 6500K | .197 | .465 | – | – | – |
| 9300-0030-01 | White and Red LED Rail 10.4″ | 120 | 6500K | .194 | .457 | 620 | – | – |
| 9300-0030-02 | RGB LED Rail 10.4″ | 120 | – | – | – | 623 | 527 | 460 |
| 9300-0031-00 | High Brightness LED Rail 12.1″ | 120 | 6500K | .197 | .465 | – | – | – |
| 9300-0031-01 | White and Red LED Rail 12.1″ | 120 | 6500K | .194 | .457 | 620 | – | – |
| 9300-0031-02 | RGB LED Rail 12.1″ | 120 | – | – | – | 623 | 527 | 460 |
| 9300-0032-00 | High Brightness LED Rail 15″ | 120 | 6500K | .197 | .465 | – | – | – |
| 9300-0032-01 | White and Red LED Rail 15″ | 120 | 6500K | .194 | .457 | 620 | – | – |
| 9300-0032-02 | RGB LED Rail 15″ | 120 | – | – | – | 623 | 527 | 460 |
Electrical and Thermal
| FO Part # | Input Current (mA) | Input Voltage (V) | Max Watts (W) | Lumens/Watt | Operating Ambient Temp. Range | Storage Ambient Temp Range |
|---|---|---|---|---|---|---|
| 9300-0030-00 | 1100 | 9.6 | 10.5 | 109 | -40ºC – +85ºC | -40ºC – +100ºC |
| 9300-0030-01 | 1000/180 | 12.8/6.3 | 13.4/1.1 | 108/80 | -40ºC – +100ºC | -40ºC – +100ºC |
| 9300-0030-02 | 280 | 6.3/9.6 | 7.1 | 32 | -40ºC – +100ºC | -40ºC – +100ºC |
| 9300-0031-00 | 1200 | 9.6 | 11.5 | 109 | -40ºC – +85ºC | -40ºC – +100ºC |
| 9300-0031-01 | 1350/140 | 12.8/10 | 17/1.5 | 108/80 | -40ºC – +100ºC | -40ºC – +100ºC |
| 9300-0031-02 | 240/320 | 8.4/9.6 | 8 | 32 | -40ºC – +100ºC | -40ºC – +100ºC |
| 9300-0032-00 | 1500 | 9.6 | 14.4 | 109 | -40ºC – +85ºC | -40ºC – +100ºC |
| 9300-0032-01 | 100/240 | 22.4/8.4 | 23.5/2 | 108/80 | -40ºC – +100ºC | -40ºC – +100ºC |
| 9300-0032-02 | 300/400 | 8.4/9.6 | 10 | 32 | -40ºC – +100ºC | -40ºC – +100ºC |
Mechanical
| FO Part # | Dimensions (mm) (length x width x total height) | LED Spacing (mm) | For use with FO Light Guide Part # |
|---|---|---|---|
| 9300-0030-00 | 220 x 5.1 x 2 | 6.5 | 8000-0093-00/01 |
| 9300-0030-01 | 220 x 5.6 x 2.3 | 7.6 | 8000-0093-00/01 |
| 9300-0030-02 | 220 x 5.6 x 2.4 | 5.0 | 8000-0093-00/01 |
| 9300-0031-00 | 258 x 5.1 x 2 | 6.9 | 8000-0094-00/01 |
| 9300-0031-01 | 258 x 5.6 x 2.3 | 6.3 | 8000-0094-00/01 |
| 9300-0031-02 | 258 x 5.6 x 2.4 | 5.2 | 8000-0094-00/01 |
| 9300-0032-00 | 321 x 5.1 x 2 | 6.9 | 8000-0095-00/01 |
| 9300-0032-01 | 321 x 5.6 x 2.3 | 6.3 | 8000-0095-00/01 |
| 9300-0032-02 | 321 x 5.6 x 2.4 | 5.2 | 8000-0095-00/01 |
