High Flux Linears

Features & Benefits

Downloads

Categories: , SKU: 730

Additional Information

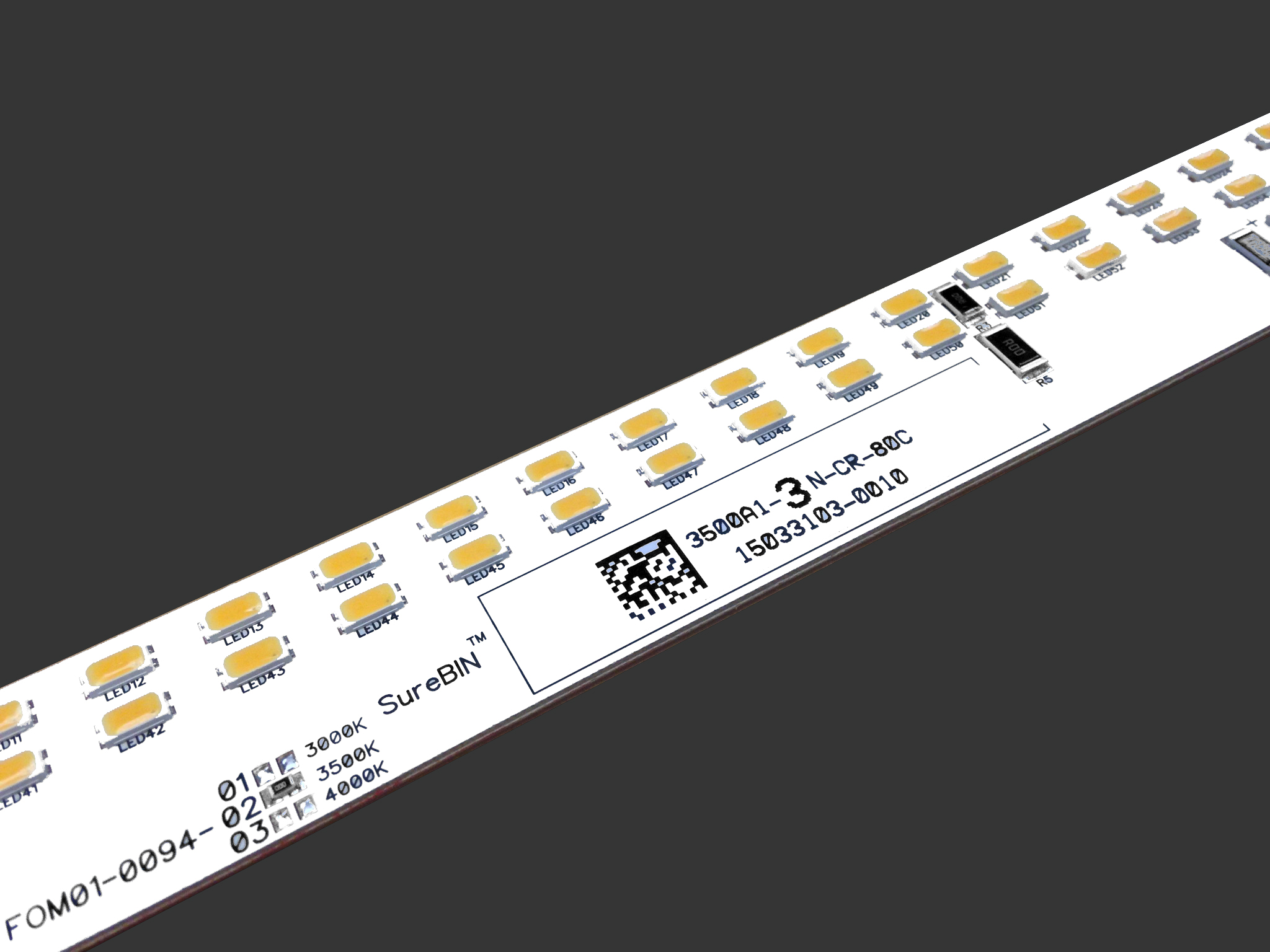

Fusion Optix dual row linear LED boards provide a low-cost, high-performance solution for troffer, pendant and edge lit LED luminaires.

White Dual Row Low Voltage High Current

Applications: 2×2, 2×4 and 1×4 recessed Troffers

7.2-22.5 W Linear LED Flat Light Array 2700-5000K 2-Row 1900-2140 lm ≤80CRI 280 x 40 mm

Mfr Part#: FOM01-1002-XXXX

Packaging: TRAY

Datasheet

Form: Linear

Board Dimensions: 280 x 40 mm

No of LEDs: 36

Nominal Flux*: 1200 – 1300 lm

CCT: 2700-5000 K

Voltage Range: 17.3-18.8

Current Range: 280-800

280 Series Double Row High Voltage Low Current

Applications: 2×2, 2×4 and 1×4 recessed Troffers

7.2-22.5 W Linear LED Flat Light Array 2700-5000K 2-Row 1900-2140 lm ≤80CRI 280 x 40 mm

Mfr Part#: FOM01-1005-XXXX

Packaging: TRAY

Datasheet

Form: Linear

Board Dimensions: 280 x 40 mm

No of LEDs: 36

Nominal Flux*: 1200 – 1300 lm

Flux-Typ: 1900-2140 lm

CCT: 2700-5000 K

Voltage Range: 34.5-37.6

Current Range: 140-400
