MicroTEK™ Diffuse – Enhanced Diffusion Profiles

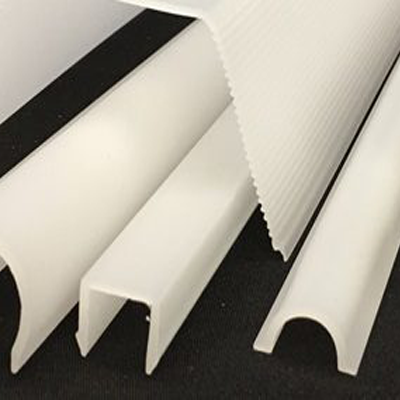

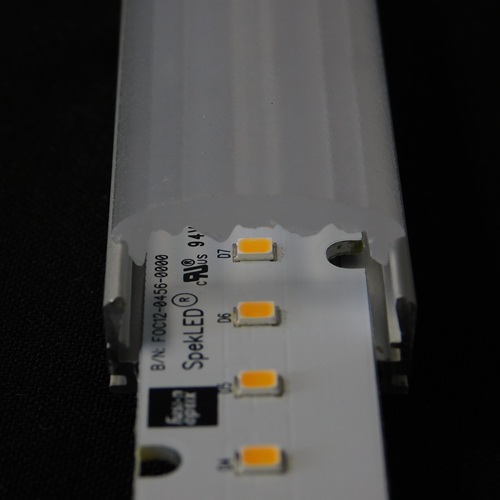

MicroTEK™ Enhanced Profile Diffusers enable high-performance energy-efficient diffuse light in linear LED lighting applications. Particularly well suited to continuous run applications which demand no seams of several tens of meters.

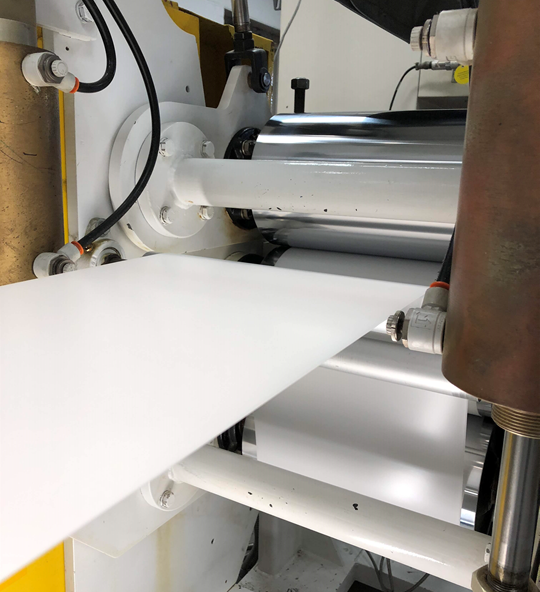

Fusion Optix has invested heavily in a broad range of in-house manufacturing capabilities for the production of plastic (PMMA, PC, COC, SAN) optical components for use in linear LED lighting fixtures. We cover anything from linear profile, sheet and film extrusion through to optical coatings and laser engraving and cutting. Equipment is in-house at our Woburn MA facility and in most cases enclosed inside Class10,000 cleanrooms.

Description

Features & Benefits

High uniformity
Excellent LED hiding power
High optical efficiency (>90%)
Very low light loss and absorption (<5%)
Customized optical properties (angles, haze, clarity)
Continuous run or profiles with snap-in features
Choice of surface finishes
Choice of optical materials

Design Guide

Thickness	Materials	FWHM	T(%)	H(%)	C(%)	LED Hiding	Spread Effect
1-2mm	PMMA or PC	100 x 100	60	100	1.5	Maximum	Lambertian
1-2mm	PMMA or PC	90 x 90	70	100	1.8	Very Strong	Very Wide
1-2mm	PMMA or PC	80 x 80	75	100	2.0	Very Strong	Very Wide
1-2mm	PMMA or PC	70 x 70	80	100	3.0	Strong	Wide
1-2mm	PMMA or PC	60 x 60	84	100	4.0	Strong	Wide
1-2mm	PMMA or PC	50 x 50	88	100	6.0	Strong	Wide
1-2mm	PMMA or PC	40 x 40	94	100	8.0	Medium	Medium
1-2mm	PMMA or PC	30 x 30	95	100	12	Medium	Medium
1-2mm	PMMA or PC	20 x 20	95	95	15	Low	Narrow
1-2mm	PMMA or PC	10 x 10	95	75	25	Low	Narrow
1-2mm	PMMA or PC	10 x 10	95	55	45	Low	Narrow

List of typical symmetric (circular) diffusion performance achievable in MicroTEK™ snap-in diffusers, continuous-run diffusers and diffusion film or sheet products.
