0.67″ (17mm) Linears

Features & Benefits

SpekLED® LS17 Series

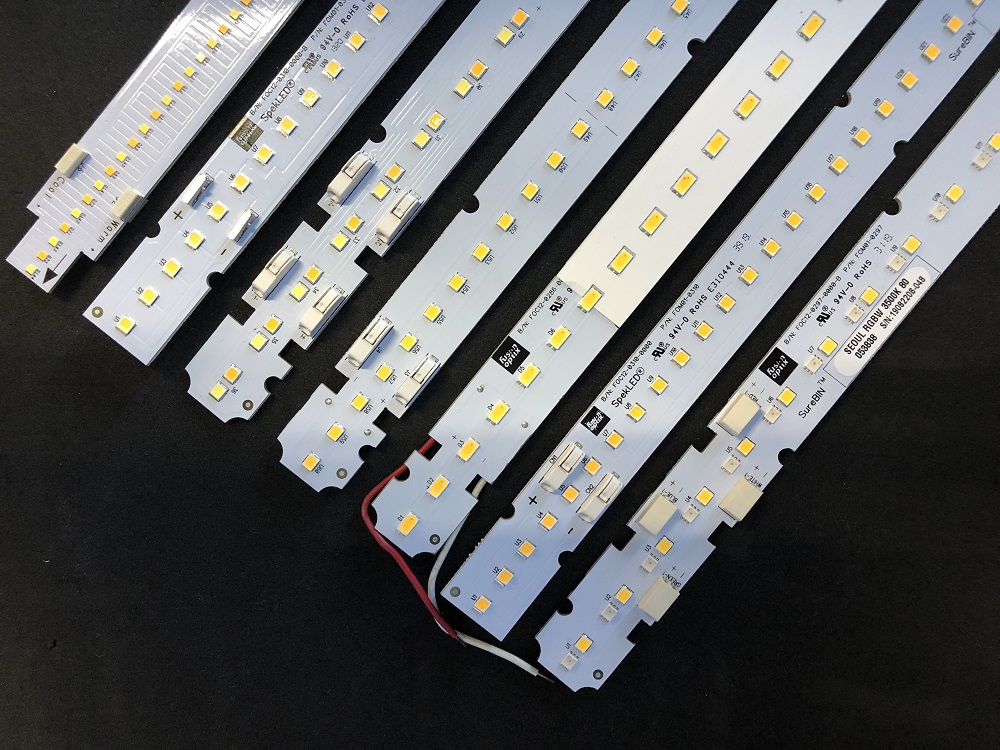

SpekLED® family of linear LED boards are available in either constant voltage or constant current modes and provide a low-cost and high-performance solution a wide range of LED lighting products, including recessed/slot linear, troffer, pendant, and suspended LED luminaires

Standard or custom lengths and multiple color temperature options (2700K, 3000K, 3500K, 4000K, RGB, RGB+W and Tunable White) allow SpekLED® LED engines to be applicable to nearly every project. CRI values of 90+ are also available and all products have a 50,000 hour life expectancy and a 5-year warranty.

Downloads

Categories: LED Boards, Linear LED Boards SKU: 1896-1

Additional Information

SpekLED® LS17 Series

Up to 200lm/W efficacy and color performance in a range of lengths up to 4ft (1200mm) with choice of drive circuits and connectors.

LR17 Series Products

entries per page

Search:

Order	Type	Length	Width	Vf	Drive	LED	Max Lm	Max W	Efficacy
FOM01-0227	4FT Edge	1200 mm	17mm	30	CC	1E/5630/12P10S	4200	24	175 lm/W
FOM01-0238	4FT Edge	1200 mm	17 mm	27	CC	5630			175 lm/W
FOM01-0086	2FT Edge	600 mm	17 mm	27	CC	5630	5460	37.65	145 lm/W
FOM01-0102	1FT Edge	300mm	17mm	30	CC	1E/5630/6P10S	2100	12	175 lm/W
FOM01-0261	Edge								175 lm/W

Showing 1 to 5 of 5 entries

0.67″ (17mm) Linears

0.67″ (17mm) Linears

Features & Benefits

SpekLED® LS17 Series

Downloads

Additional Information

SpekLED® LS17 Series

Up to 200lm/W efficacy and color performance in a range of lengths up to 4ft (1200mm) with choice of drive circuits and connectors.

LR17 Series Products
